G5 Voodoo Neo Key Features

Highlights for both versions include:

An all new communications module: 10x faster USB speeds (from minutes down to seconds to download log files), Ethernet, and enhanced WiFi and GPS.
1GB onboard of logging memory, double that of other Link ECUs.
Highly customisable IO, using 2 types of multi purpose pins: Injection/Ignition/Aux pins and dual-purpose ADIO pins.
Dual on-board E-throttle, with H-bridges that now natively support things like modern e-wastegates or e-blow off valves
1 onboard wideband
Configurable Analogue Temp inputs, with two different pull up resistor values (1kΩ and 10 kΩ) , allowing more types of sensors to be used
Analogue Temp pull-ups can be disabled now, allowing Analogue Temps to be used as regular Analogue Volt inputs.
K-line support.
CNC Case, Sealed enclosure

G5 Voodoo ECU Specifications

OUTPUTS	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
Injecton Drives	8	12*	16‡
Ignition Drives	6	8	12‡
Auxiliary Outputs	12†	6	14
+5V Sensor Power Supply

† G5 Voodoo Pro ECUs use multi-purpose (inj/ing/aux) drives, allowing some pins to be used for either Inj or Ign or Aux
# Number of Auxiliaries depends on number of unused Inj/Ign drives available

INPUT/OUTPUT PINS	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
ADIO dual-purpose	6	6	–

INPUTS	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
Digital Inputs	10†	10*	10
Analogue Volt	3	3	14
Analogue Temp	4	4	4
Knock	2	2	2
Trigger	2	2	2

*G5 Voodoo Neo share certain Inj/Ign/Aux pins as additional Digital Inputs

*G5 Voodoo Neo ECU's introduce ADIO pins, which can be used as Aux outputs, or An Volt inputs.

OTHER FEATURES	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
Onboard Wideband	1	1	2
H-Bridge (E-throttle)	2	2	2
GPS

COMMUNICATIONS	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
USB	USB-C	USB-C	USB-C
Power over USB			–
Wi-Fi
Ethernet			–
CAN Bus	2 Channel	2 Channel	2 Channel

DATA LOGGING	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
Onboard Logging Memory	1 GB	1 GB	512 MB
Maximum Total Logging Rate	100 khz	100 khz	100 khz
Logging Channels	250	250	250

G5 Voodoo Neo Key Features

G5 Voodoo ECU Specifications

Dimensions

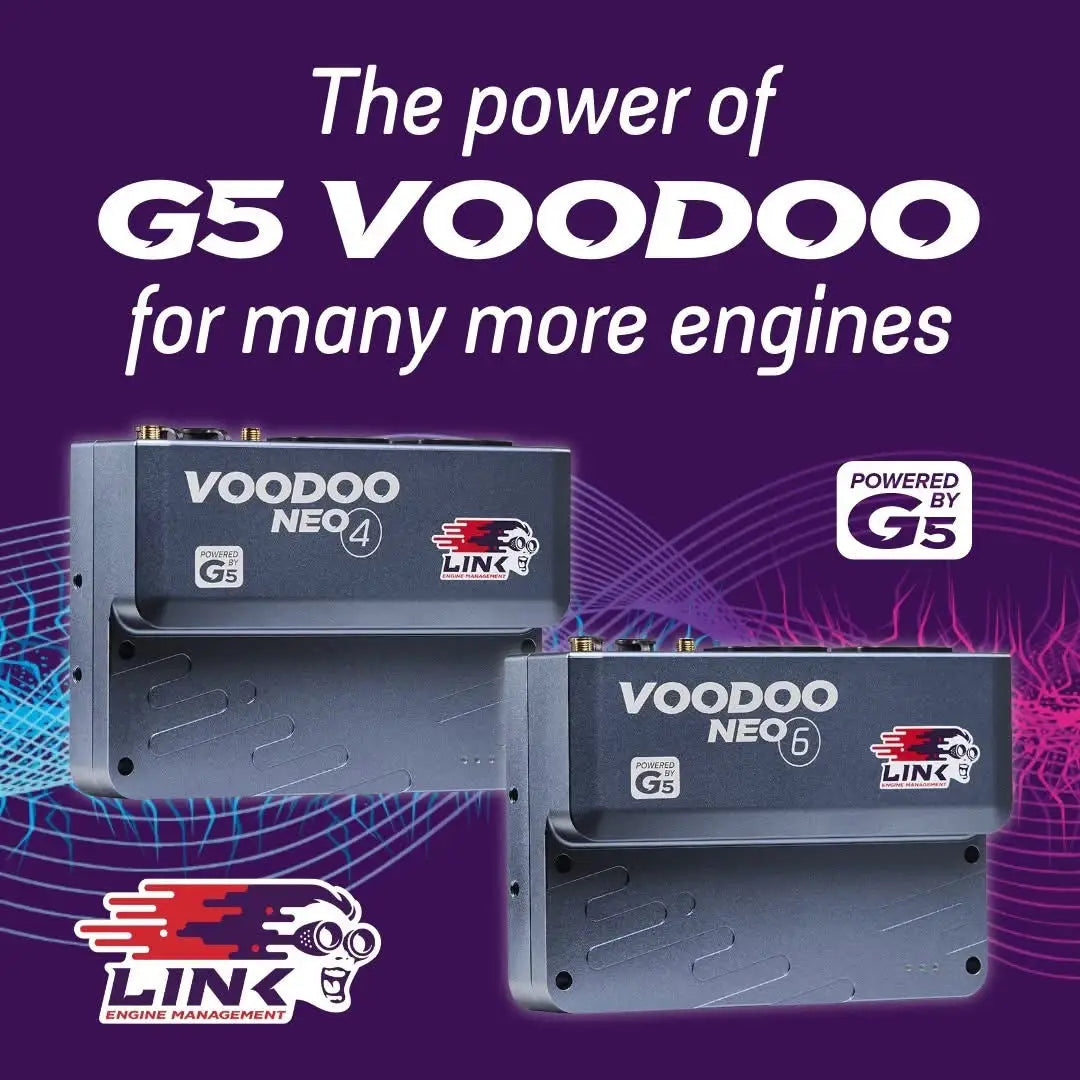

Link G5 Voodoo Neo

The G5 Voodoo range will be even more complete in 2025 with the G5 Voodoo Neo ECU – all the motorsport and engine management features of the G5 Voodoo Pro, with a focus on speed and flexibility.
