Description

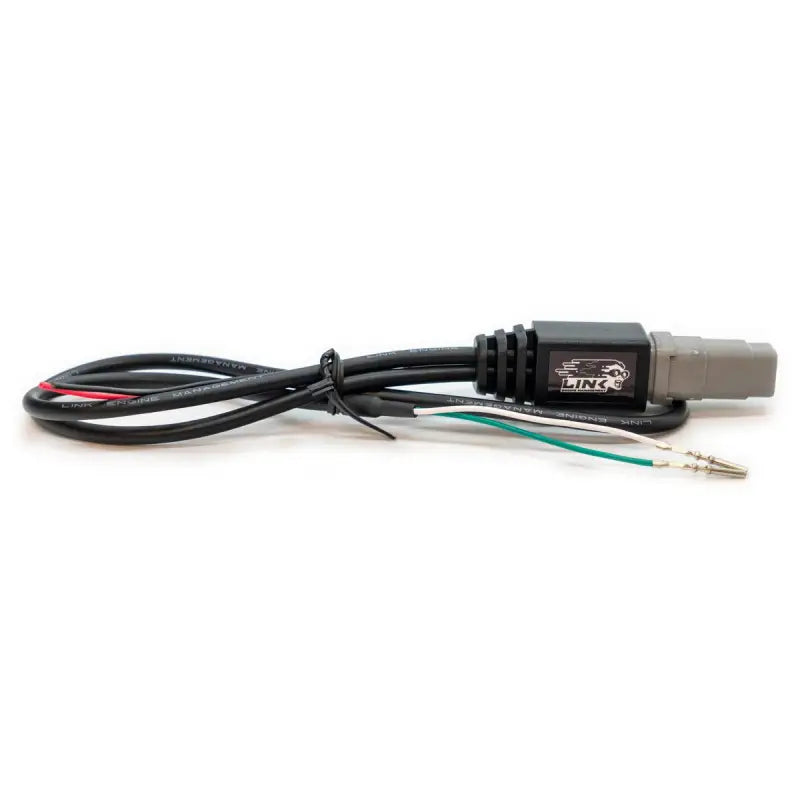

Required to add CAN communication to WireIn ECU's which have CAN accessible via the Header.

Compatible ECU's:
G4X/G4+ Atom (CAN1)
G4X/G4+ Monsoon (CAN1)
G4X/G4+ Storm (CAN2)
G4X/G4+ Xtreme (CAN2)
G4X/G4+ Fury (CAN2)
G5 Voodoo Pro (CAN1)
G4+ Force (CAN2)
G4+ Thunder (CAN2)

Specs

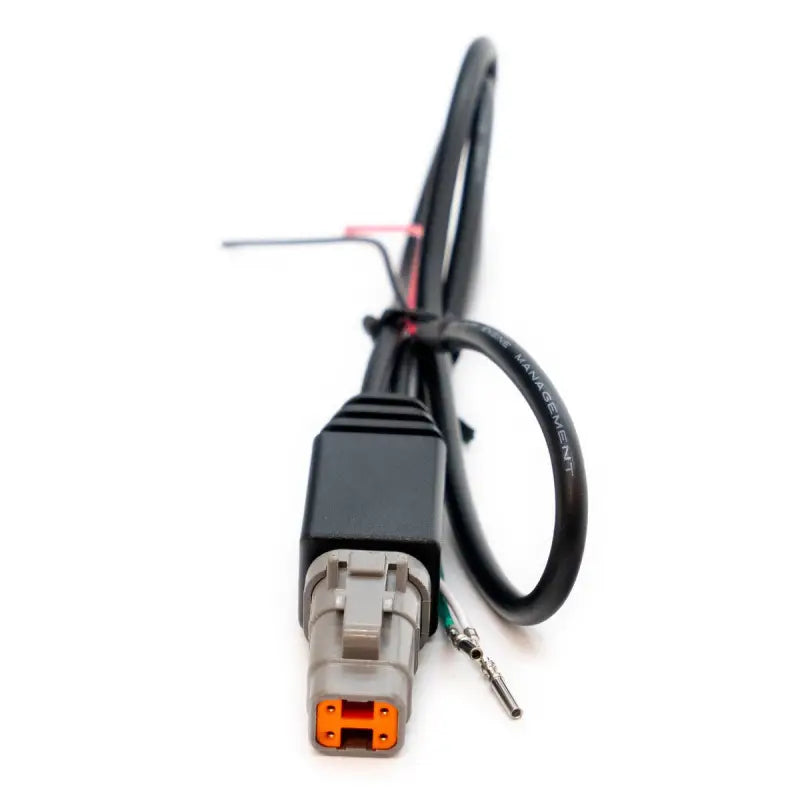

DTM4 Male to Flying leads. CAN H & L crimped with Superseal terminals. 12V & GND Flying Leads. Length: CAN Loom length 300mm (Flying leads 500mm long)

DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V

£3360 GBP
Tax included, shipping and discounts calculated at checkout.

CANSS - CAN Connection Cable for WireIn ECU’s (ECU Header CAN) is available to order, usually ready to dispatch in 2-4 working days.

Required to add CAN communication to WireIn ECU's which have CAN accessible via the Header.

Compatible ECU's:
G4X/G4+ Atom (CAN1)
G4X/G4+ Monsoon (CAN1)
G4X/G4+ Storm (CAN2)
G4X/G4+ Xtreme (CAN2)
G4X/G4+ Fury (CAN2)
G5 Voodoo Pro (CAN1)
G4+ Force (CAN2)
G4+ Thunder (CAN2)

Specs
DTM4 Male to Flying leads. CAN H & L crimped with Superseal terminals. 12V & GND Flying Leads. Length: CAN Loom length 300mm (Flying leads 500mm long)

DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
