Name: LINK MXS Strada 5-inch Dash - Street Edition
Brand: Link ECU Engine Management
SKU: link-display-mxs-street
Price: 1200 GBP
Availability: OutOfStock

1 2

Description

Link MXS Strada 5-inch dash, powered by AIM.

The Link MXS Strada Street edition is a full colour, 5-inch dash display legal for road use featuring 10 RGB shift lights and street icons down the side of the dash. It is pre-configured to work with all Link G4+/G4X Wire-In and Plug-in ECU's. See features tab for more information.

This listing is for the 'Street edition', please see the 'Race edition' if you are looking for a dash for motorsport purposes.

The Strada dash is also available in 7-inch (MXG) and 10-inch (MXT) versions.

£1,200⁰⁰ GBP

Tax included, shipping and discounts calculated at checkout.

LINK MXS Strada 5-inch Dash - Street Edition is available to order, usually ready to dispatch in 2-4 working days.

The Strada dash is also available in 7-inch (MXG) and 10-inch (MXT) versions.

Specification.custom

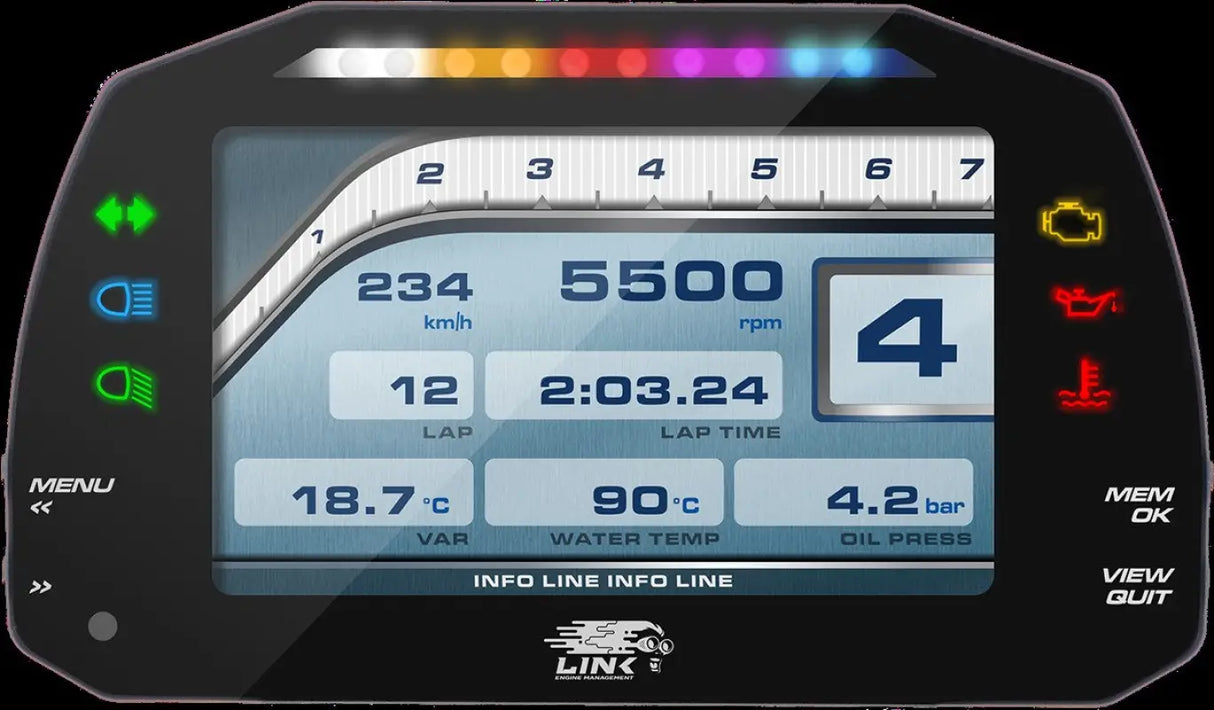

The Link MXS Strada Street Edition dash features customisable shift lights, six street icons and a high contrast 5-inch TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.

The 10 multi-coloured RGB shift lights on the MXS Strada can be customised to your liking to define the RPM threshold for each single gear. There are also 6 Street Icons located to the side of the screen. These include an indicator light, headlight, high beam, check engine, oil pressure warning light and temperature warning light.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The Link MXS connects directly to your Link ECU via the pin kit and wiring provided in the box. To use with plugin ECU’s - CANPCB and CANF connectors will be required (Purchased separately).

The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.

Included in the box:
Link MXS 1.2 Strada
USB cable
14 pin standard wiring
23 pin connector + contacts

GPS module available separately.

Dimensions: 169.4x97x23 mm
Weight: 480 g
Power consumption: 400 mA
Waterproof: IP65

Display 5” TFT
Resolution 800x480 pixels
Contrast 600:1
Brightness 700cd/m2 - 1,100 Lumen
Ambient light sensor Yes
Alarm LEDs 6 RGB Icons
Shift lights 10 integrated freely configurable RGB LEDs
CAN connections 2
ECU connections CAN
Analog inputs 8 fully configurable, max 1,000 Hz each
Digital inputs 1 speed input, coil RPM input
Digital outputs 1 (1 A max)
Second CAN Yes
Body Anodized Aluminum
Pushbuttons Metallic
Connectors 2 AMP connectors + 1 Binder connector
Power consumption 400 mA
Dimensions 169.4x97x23 mm
Weight 480 g
Waterproof IP65
